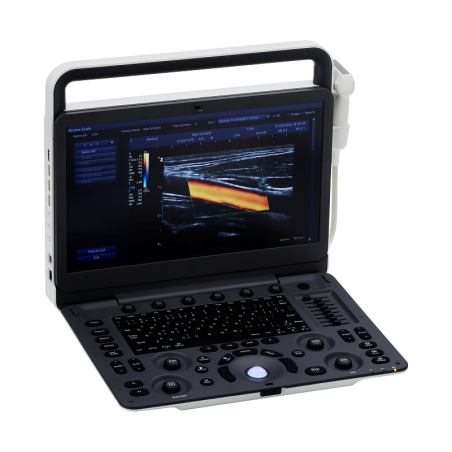

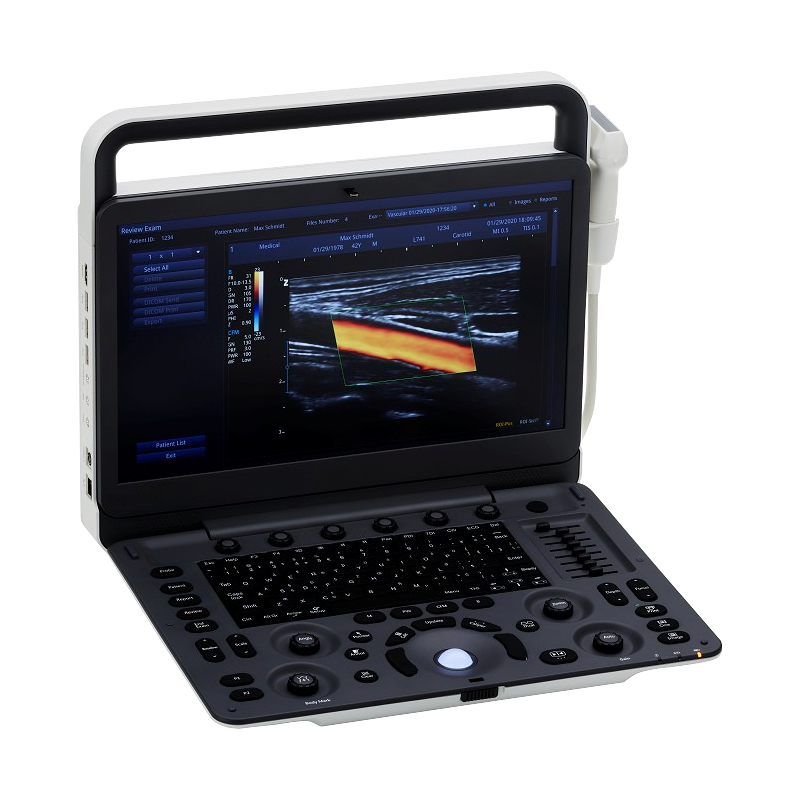

SonidoSmart Pro Ultrasound System

SonidoSmart Pro – Compact High-Performance Ultrasound System

SonidoSmart Pro is an advanced and portable ultrasound system with high image quality and user-friendly operation. Ideal for clinics requiring flexible and reliable diagnostics.

Advanced ultrasound in a compact design

SonidoSmart Pro is a modern ultrasound system that combines advanced imaging technology with high mobility. It is designed for clinics and practitioners who require reliable diagnostics in a flexible and compact solution.

The 15.6" high-resolution color display delivers sharp and detailed images, while advanced technologies such as Tissue Harmonic Imaging (THI), Pure Inversion Harmonic Imaging, Tissue Specification Imaging, and Spatial Compound Imaging ensure optimal image quality in all examinations.

Versatile diagnostics for clinical use

SonidoSmart Pro supports multiple imaging modes, including:

• B, 2B, 4B, M, CFM, PDI, DirPDI, and PW (CW optional)

With an integrated linear probe up to 16 MHz, the system is particularly well-suited for musculoskeletal ultrasound (MSU) and a wide range of clinical applications.

User-friendly and efficient workflow

The system is designed with ease of use in mind. The intuitive control panel allows quick navigation, enabling efficient workflow in busy clinical environments.

Mobility and flexibility

Weighing only 6.5 kg, SonidoSmart Pro is easy to transport between treatment rooms or locations. The built-in battery with more than 1 hour of operation allows use without constant power supply.

An optional trolley is available for stationary use.

Advanced features included

SonidoSmart Pro comes with a comprehensive standard package at no extra cost, including:

• Color Doppler
• PW Doppler
• Automatic IMT measurement

Additional advanced features include:

• Vis Needle – enhanced needle visualization in tissue
• Panoramic Imaging – extended field of view for muscles and ligaments

These features improve diagnostic accuracy, treatment quality, and patient understanding.

Connectivity and data storage

The system is fully compatible with DICOM, ensuring seamless integration with existing IT systems. With 500 GB internal storage and USB support, you have ample capacity for managing patient data.

Benefits

• High image quality with advanced imaging technology
• Compact and portable ultrasound system
• User-friendly interface
• Ideal for musculoskeletal ultrasound (MSU)
• Integrated Doppler and advanced features
• DICOM compatible
• Large storage capacity

Specifications

• Display: 15.6" high-resolution color screen
• Frequency: Up to 16 MHz
• Imaging modes: B, 2B, 4B, M, CFM, PDI, DirPDI, PW (CW optional)
• Storage: 500 GB
• Weight: 6.5 kg
• Dimensions: 37.8 × 35.2 × 11.4 cm
• Battery life: > 1 hour
• Power supply: 100–240 V
