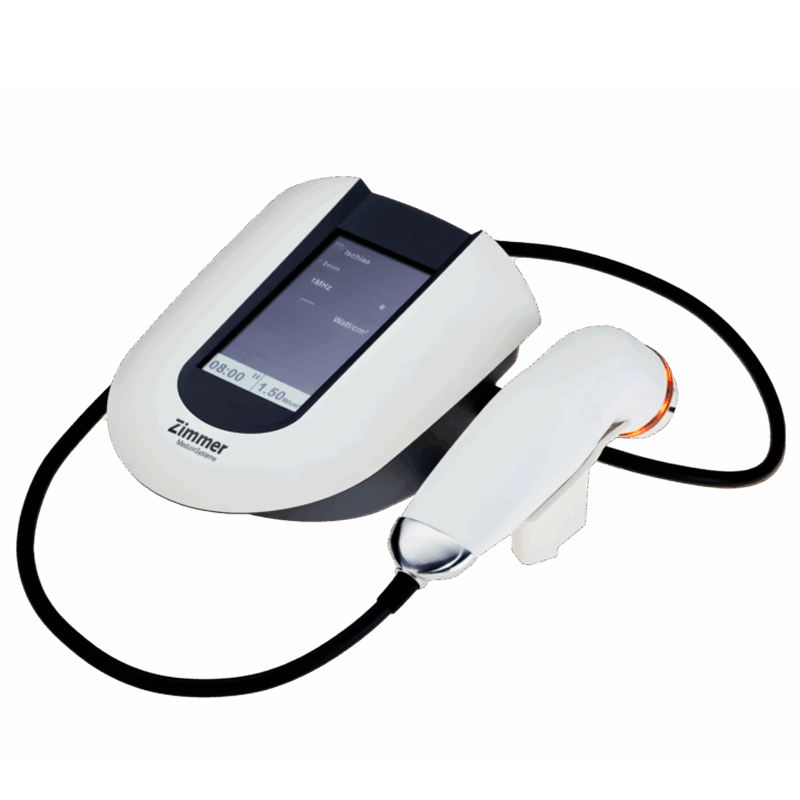

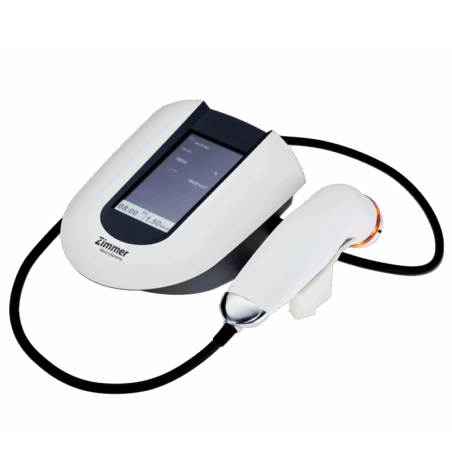

Zimmer Sono 2 – Professional Ultrasound Therapy System

Sono 2 – Professional Ultrasound Therapy System

Sono 2 is a compact, high-performance ultrasound therapy system featuring multi-frequency technology, an intuitive touchscreen, and 25 evidence-based treatment protocols. Ideal for physiotherapy, rehabilitation, and pain management.

Advanced ultrasound therapy made simple

The Sono 2 from Zimmer MedizinSysteme is designed for healthcare professionals seeking efficient, safe, and user-friendly ultrasound therapy. Featuring 1 MHz and 3 MHz multi-frequency technology, it delivers precise treatment of both superficial and deep tissue structures.

Its compact design, rapid start-up, and intuitive full-color touchscreen make Sono 2 an excellent choice for both clinical and mobile applications.

Intelligent technology for optimal treatment

The innovative 360° LED contact ring provides continuous visual feedback to ensure optimal contact between the applicator and the patient's skin. Intelligent power control automatically adjusts energy output for consistent and effective treatment.

With 25 evidence-based treatment protocols and 20 programmable user settings, treatments can easily be tailored to individual patients and clinical indications.

Suitable for a wide range of indications

Sono 2 is ideal for treating:

• Tendinitis
• Bursitis
• Epicondylitis
• Capsulitis
• Muscle and ligament injuries
• Scar tissue
• Joint contractures
• Acute and chronic pain
• Improved circulation and tissue healing

Specifications

• Frequency: 1 MHz & 3 MHz
• Intensity: Continuous: 0–2 W/cm² - Pulsed: 0–3 W/cm²
• Duty Cycles: 5%, 10%, 20%, 33%, 50%, 80%
• Pulse Frequencies: 16 Hz, 48 Hz, 100 Hz
• Applicators: 5 cm², 0.8 cm² (optional)
• Treatment Protocols: 25 predefined, 20 programmable
• Display: 480 × 272 full-color touchscreen
• Dimensions: 21 × 19 × 9 cm
• Weight: 1.15 kg
• Power Supply: 100–240 V AC / 50–60 Hz
